PSH — Straight-Line Action Clamps
Straight-line action clamps; handle and plunger move in the same direction, locking in both extended and retracted positions.

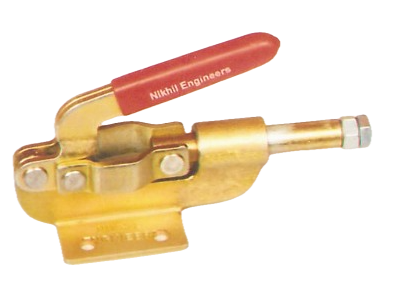

PSH-06

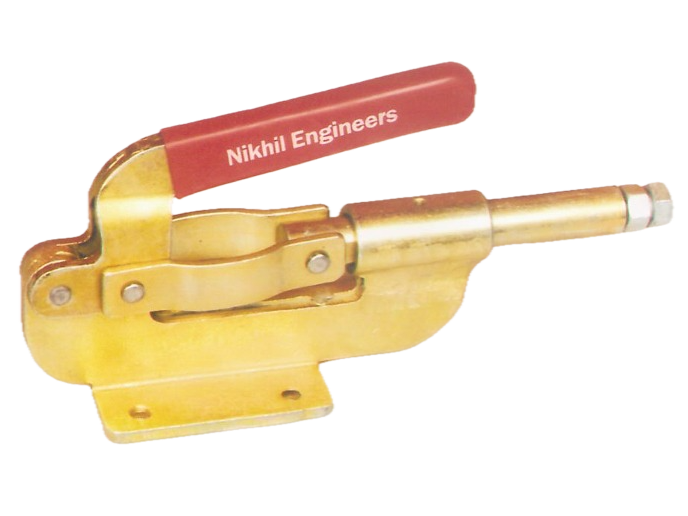

PSH-08

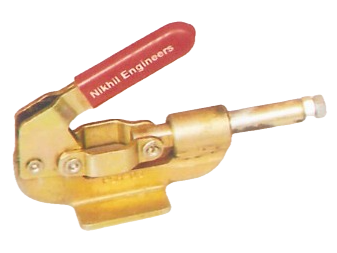

PSH-10

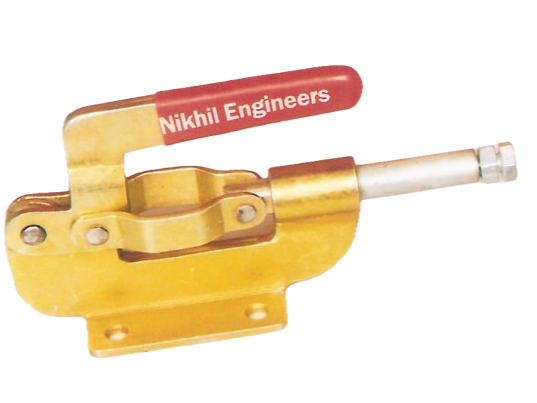

PSH-12
Specifications
Click to view full size

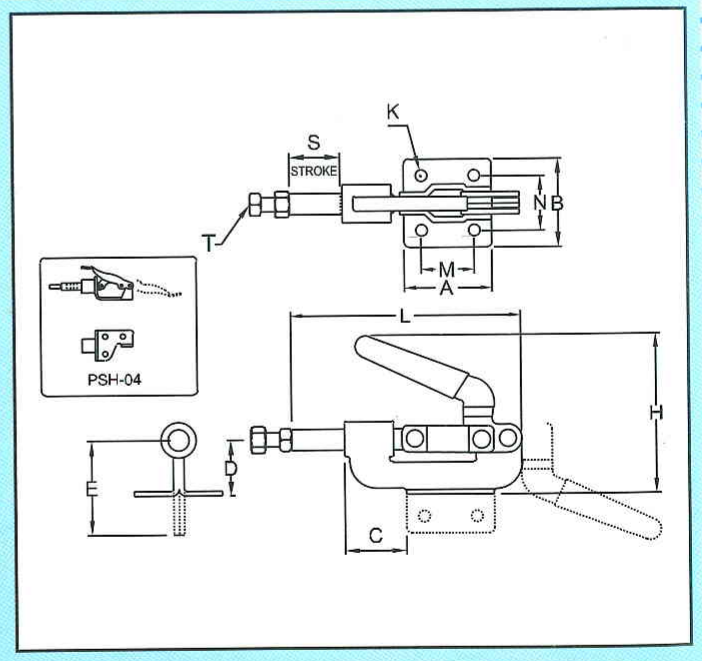

Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N (mm) | S (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PSH-04 | 34 | 27.5 | 12 | 13 | — | 36 | 4.5 | 77 | 16 | 16 | 17 | 4 | 60 | |
| PSH-06 | 40 | 38 | 30 | 27 | 39 | 85 | 5 | 127 | 55 | 25 | 30 | 6 | 200 | |
| PSH-08 | 50 | 50 | 21 | 30 | 47 | 86 | 6.5 | 134 | 30 | 34 | 30 | 8 | 350 | |
| PSH-10 | 85 | 62 | 38 | 51 | 72 | 130 | 8.5 | 205 | 60 | 38 | 50 | 10 | 800 | |
| PSH-12 | 102 | 81 | 74 | 66 | 90 | 145 | 8.5 | 266 | 66 | 55 | 60 | 12 | 1200 |
