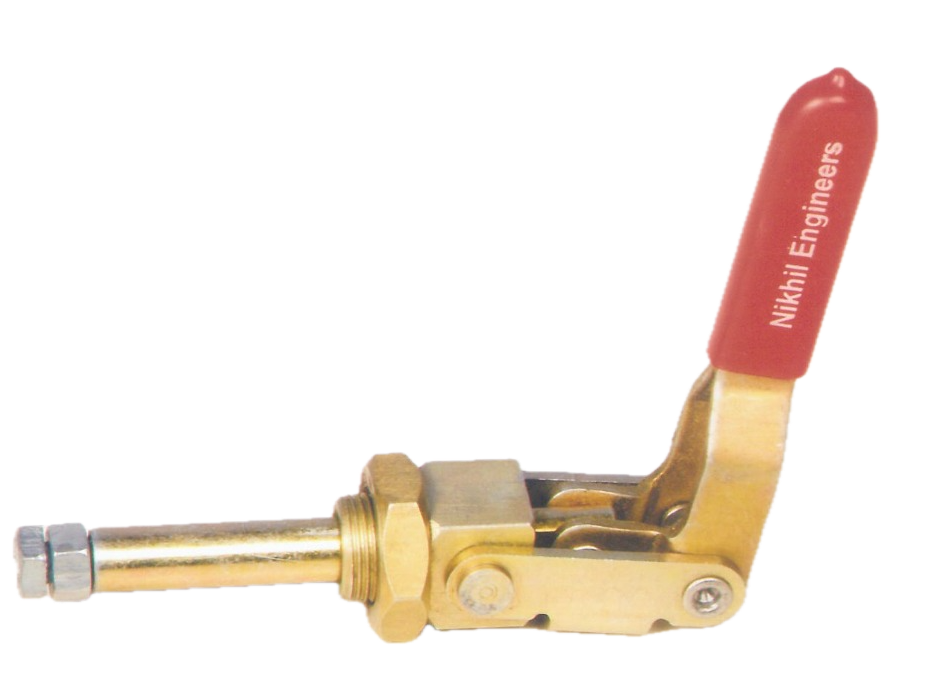

NPL — Flange-Mounting Straight-Line
Flange-mounting straight-line clamps, anchored by lock nut; handle position adjustable through 360°.
NPL-08
Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.

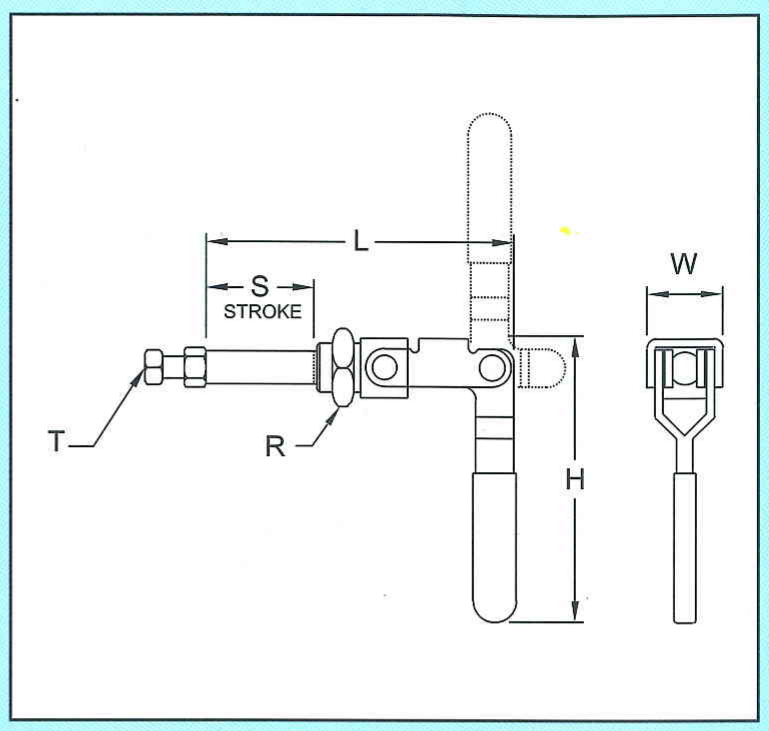

| Model | H (mm) | L (mm) | R (mm) | S (mm) | T (mm) | W (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|
| NPL-06 | 78 | 62 | 16 | 18 | 6 | 26 | 100 | |
| NPL-08 | 112 | 118 | 20 | 40 | 8 | 28 | 150 |
