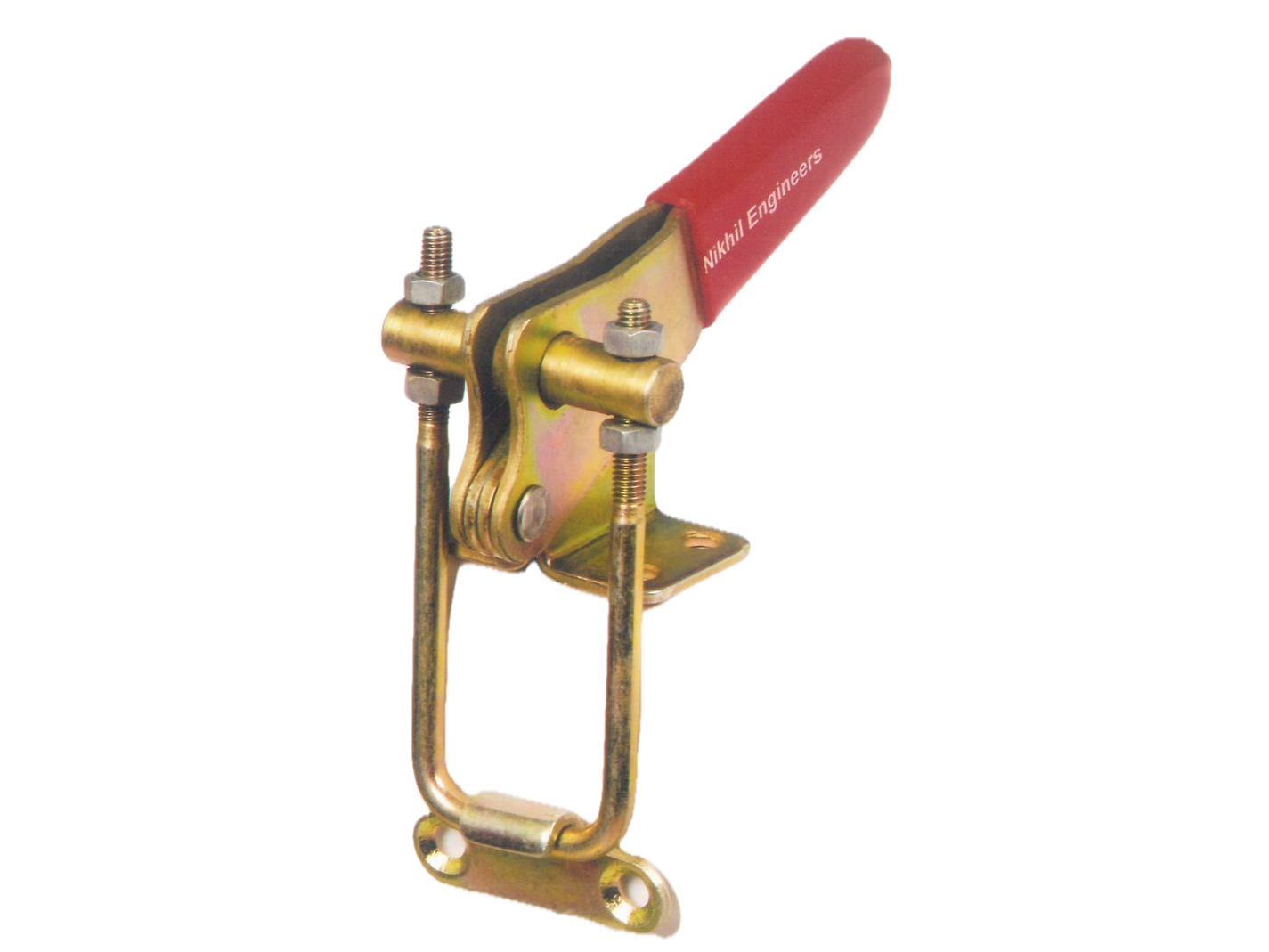

UPL-V — Pull U-Bolt Type (90°)
Pull-action U-bolt clamps that pull through 90°.
UPL-06V

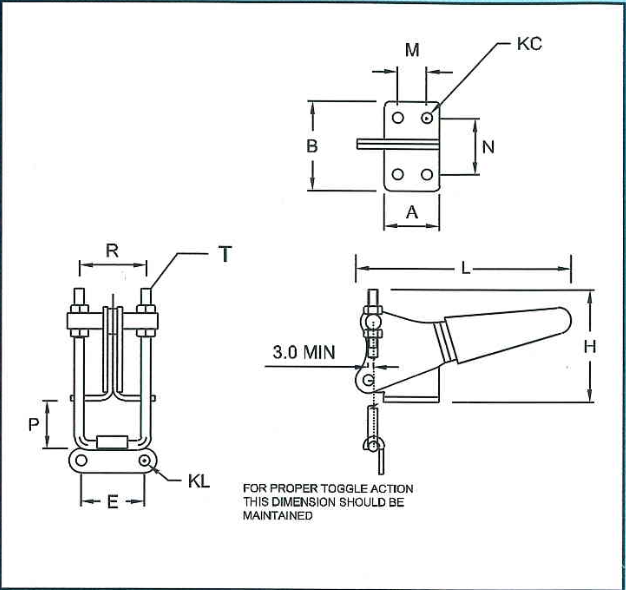

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | E (mm) | H (mm) | KC (mm) | KL (mm) | L (mm) | M (mm) | N (mm) | R (mm) | P (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UPL-05V | 18 | 34 | 27 | 50 | 5 | 5 | 90 | 21 | — | 25 | 30 | 150 | |
| UPL-06V | 34 | 51 | 39 | 63 | 6.5 | 6.5 | 135 | 19 | 35 | 41 | 44 | 250 |
