UPL-3 — Pull U-Rod Type

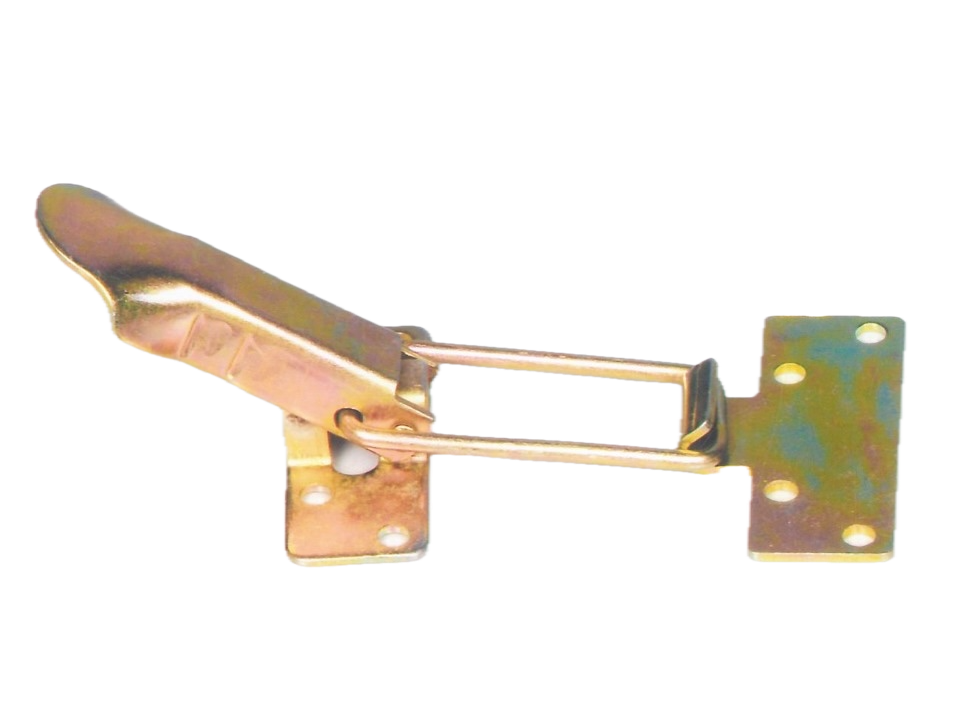

Pull-action U-rod clamps. Available in SB short base, LB long base and LH long handle.
UPL-03-LB

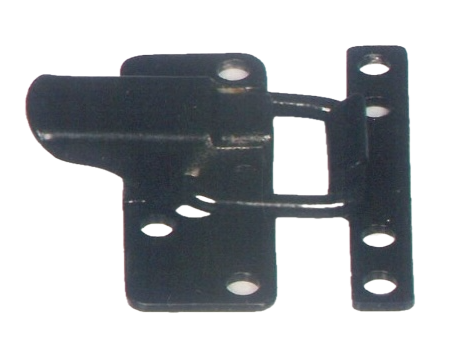

UPL-03-LH

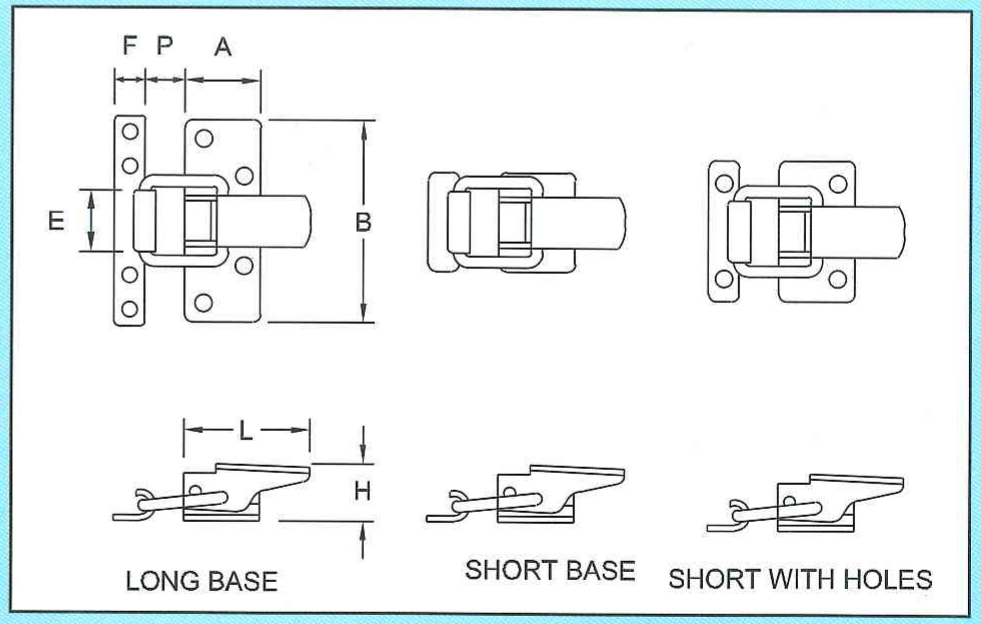

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | E (mm) | F (mm) | H (mm) | L (mm) | P (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|
| UPL-03-SB | 19 | 27 | 16 | 9 | 14 | 33 | 10.5 | 20 | |
| UPL-03-LB | 20 | 55 | 16 | 9 | 14 | 33 | 10.5 | 20 | |
| UPL-03-LH | 20 | 55 | 16 | 20 | 14 | 63 | 47 | 20 |
