VLD — Medium-Duty Vertical Handle Clamps
Medium-duty vertical handle hold-down clamps. VLD fixed position and SL solid bar.

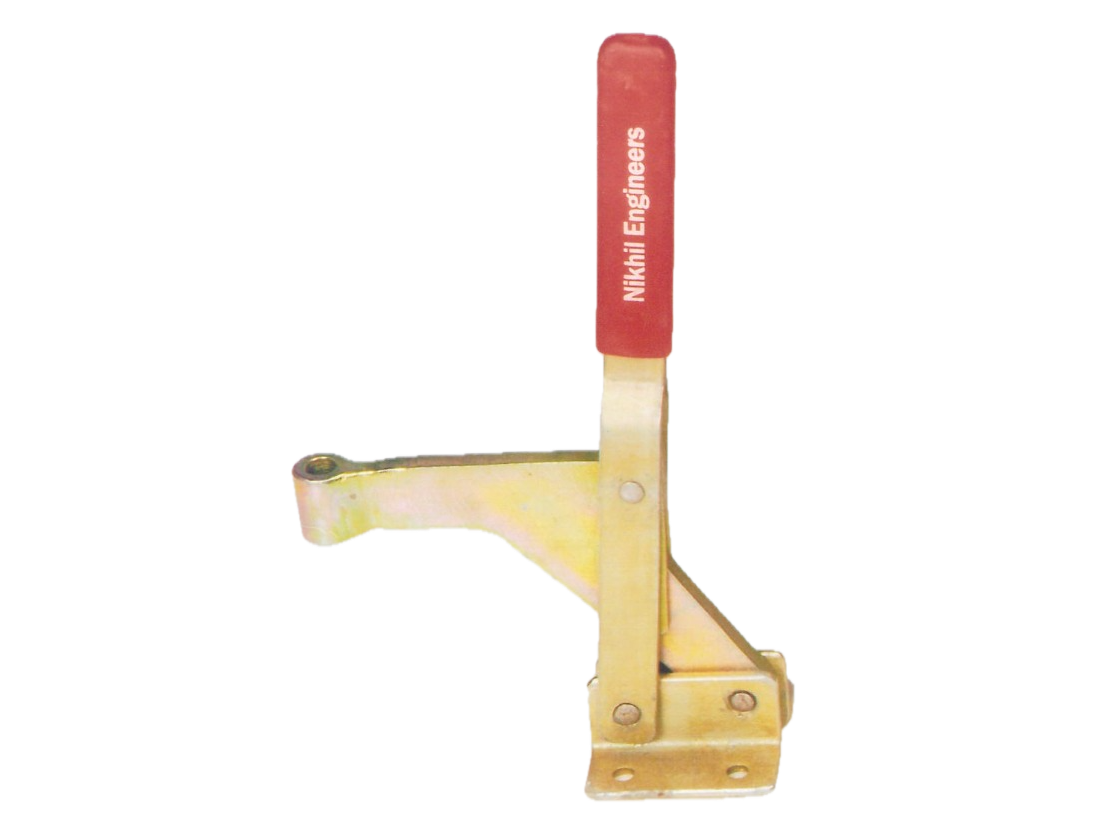

VLD-12

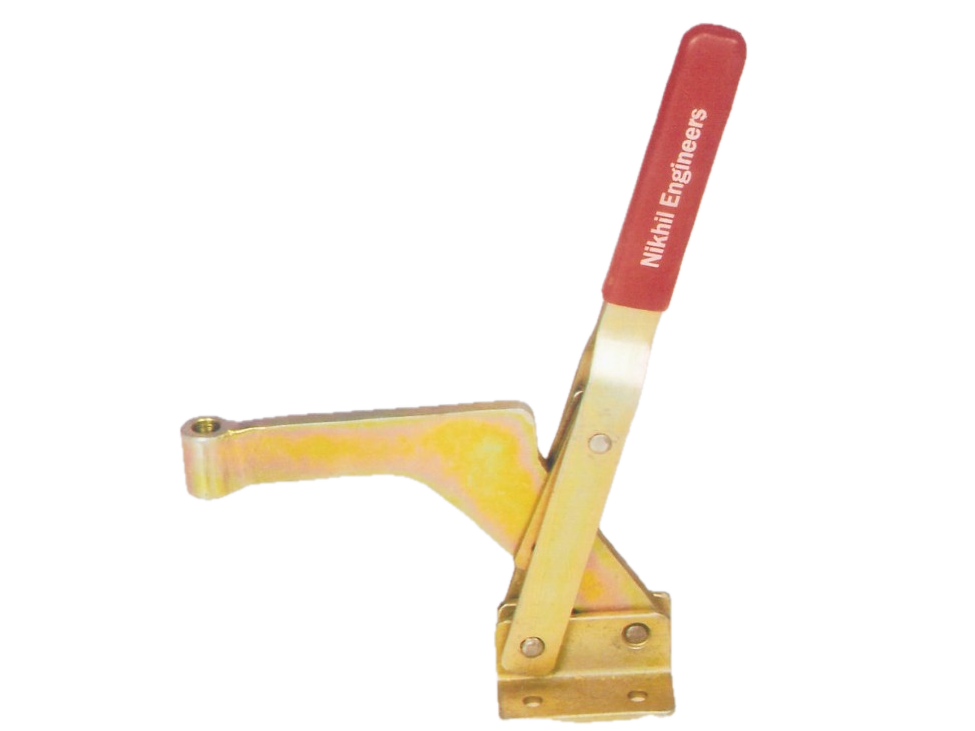

VLD-12L
Specifications

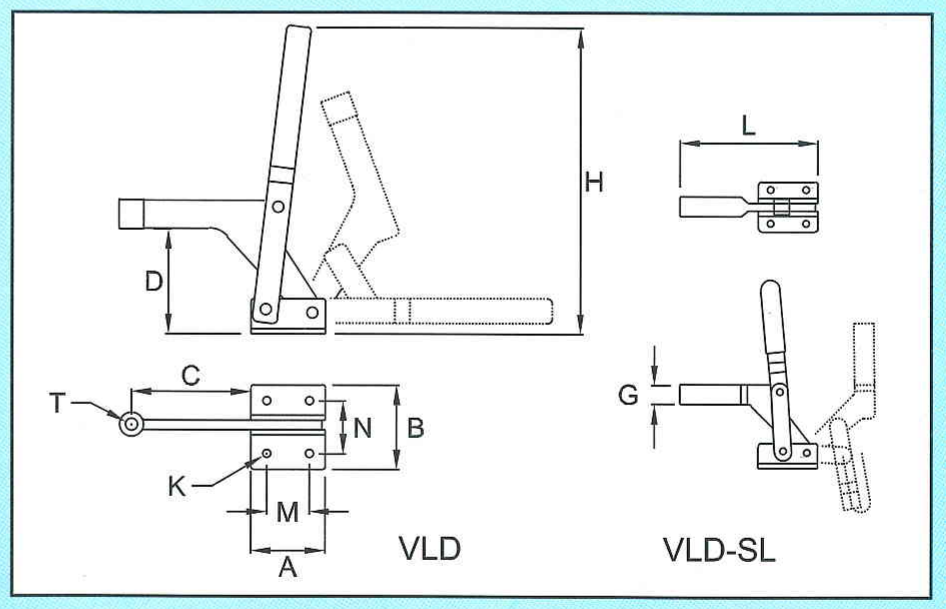

Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | G (mm) | H (mm) | K (mm) | L (mm) | M (mm) | N (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VLD-SL | 60 | 60 | 75 | 72 | 20 | 240 | 5 | 130 | 40 | 40 | — | 350 | |
| VLD-12 | 75 | 78 | 90 | 105 | — | 330 | 8.5 | 180 | 45 | 55 | 12.5 | 750 | |
| VLD-12L | 75 | 78 | 120 | 105 | — | 330 | 8.5 | 210 | 45 | 55 | 12.5 | 750 |
