HLDV — Vertical Handle Clamps
Hold-down vertical handle clamps. Available in U-slot, FP fixed-position arm, SL solid-bar arm and SB straight base.

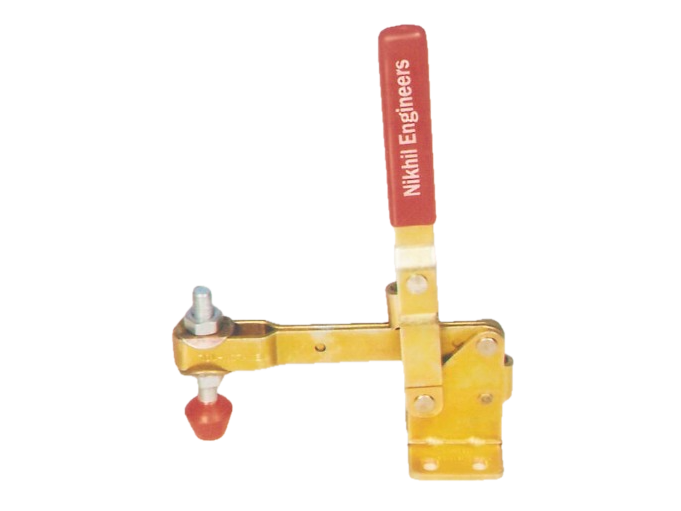

HLDV-08

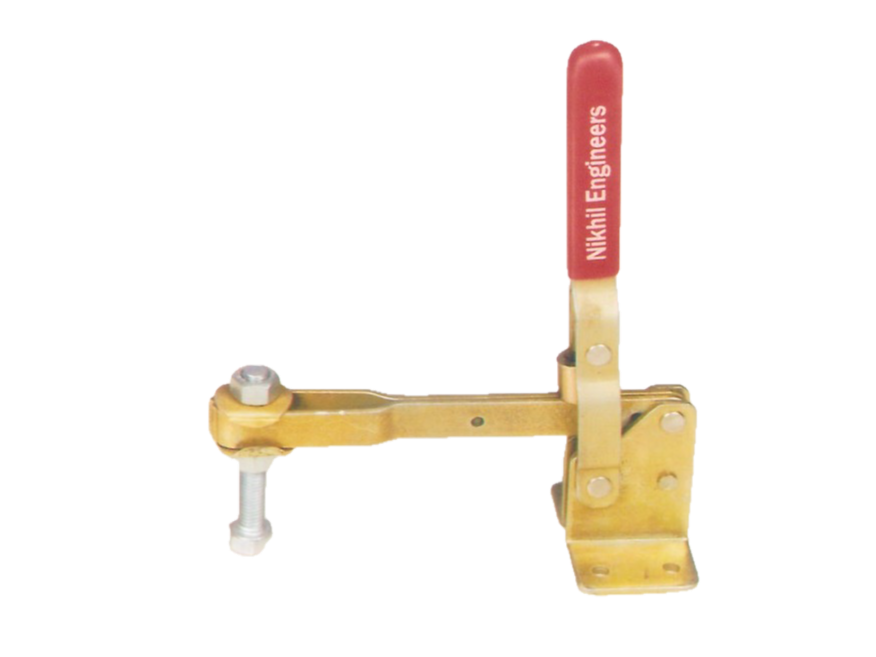

HLDV-10

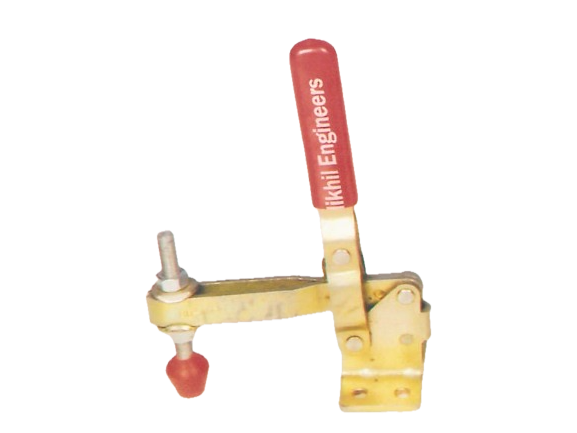

HLDV-10L

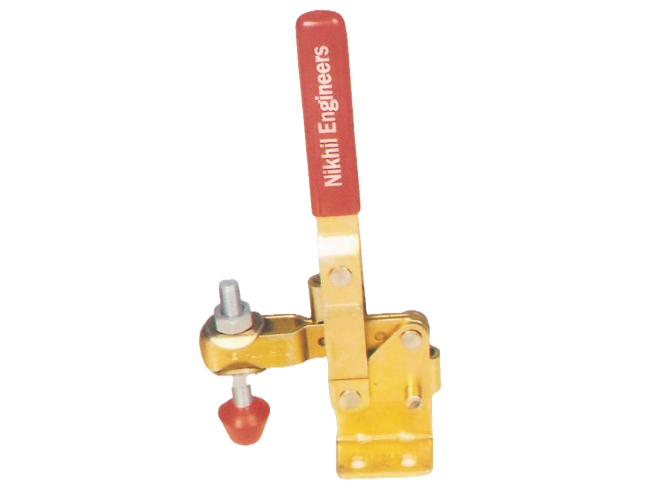

HLDV-12

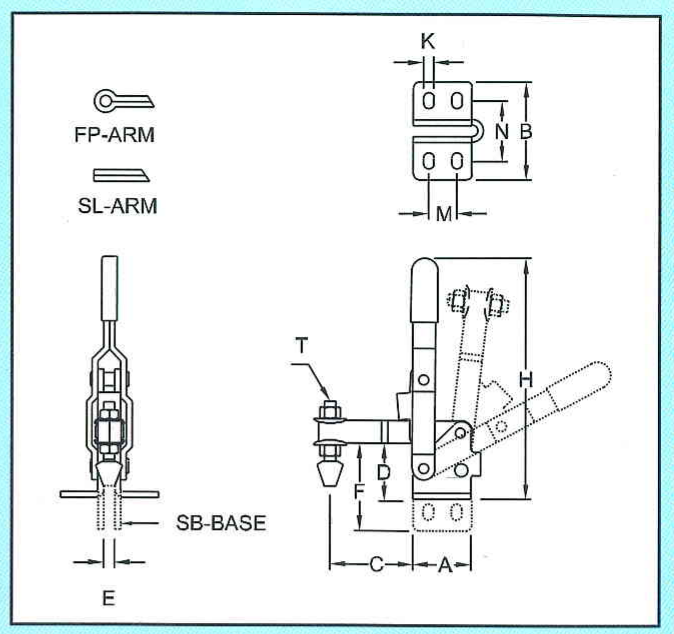

Specifications
Click to view full size
Click a column heading to sort. All dimensions in mm unless noted.
| Model | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | H (mm) | M (mm) | N (mm) | K (mm) | T (mm) | Holding Force (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HLDV-06 | 31 | 52 | 40 | 27 | 6 | 45 | 125 | 15 | 31 | 5.5 | 6 | 100 | |
| HLDV-08 | 37 | 62 | 70 | 35 | 6 | 55 | 180 | 20 | 40 | 6.5 | 8 | 160 | |
| HLDV-10 | 45 | 68 | 50 | 48 | 6.4 | 71 | 225 | 23 | 49 | 6.5 | 10 | 250 | |
| HLDV-10L | 45 | 68 | 100 | 48 | 6.4 | 71 | 225 | 23 | 49 | 6.5 | 10 | 175 | |
| HLDV-12 | 50 | 77 | 140 | 55 | 8 | 80 | 250 | 29 | 54 | 6.5 | 12 | 350 |
